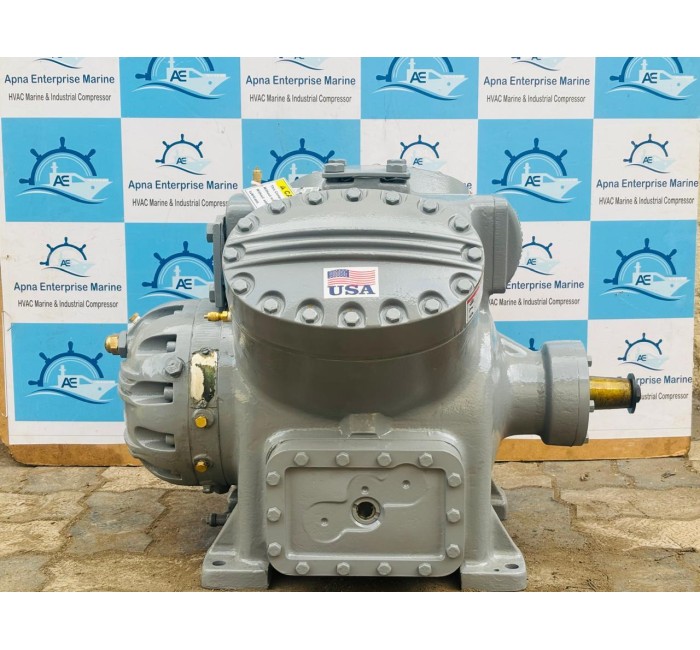

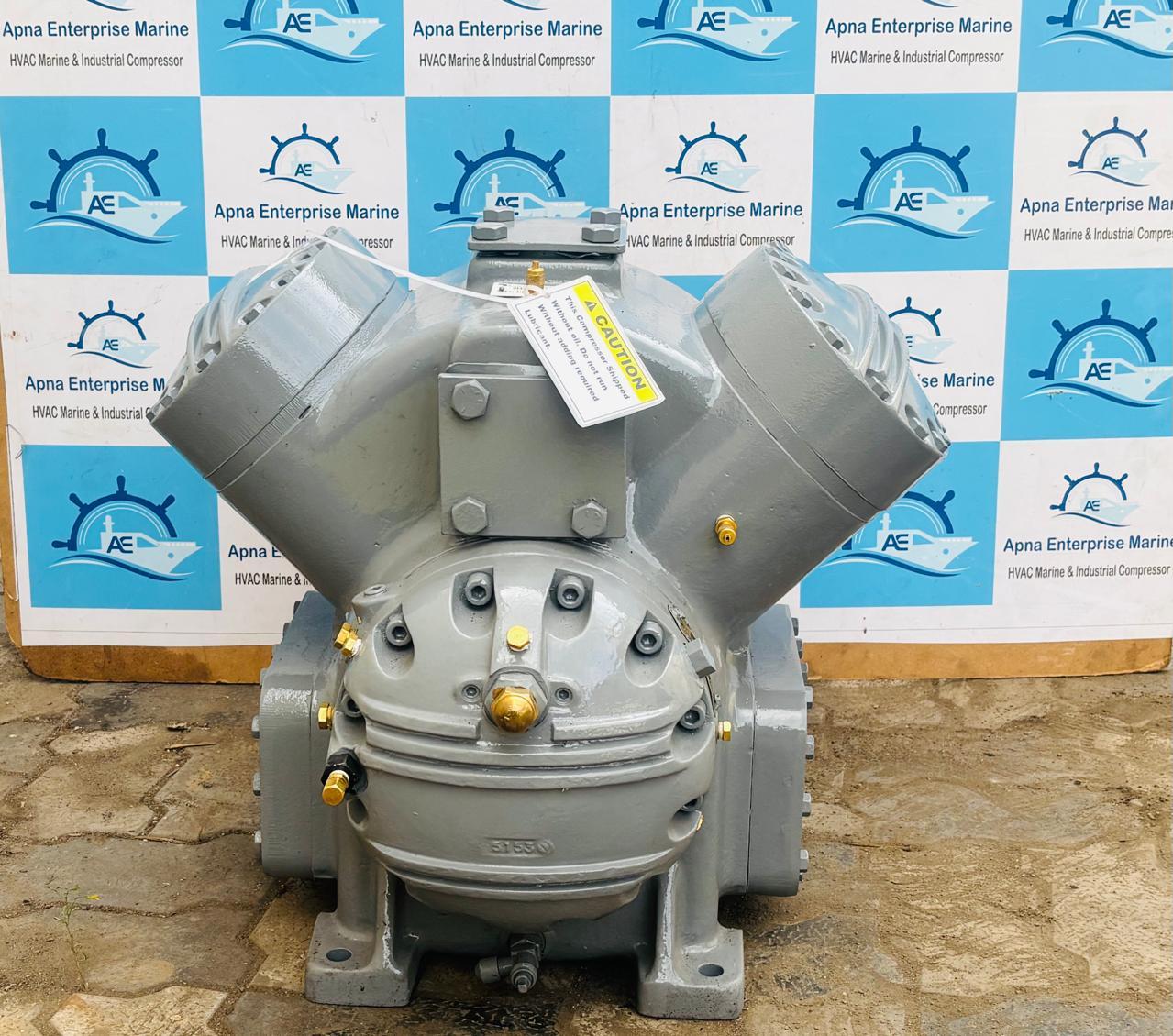

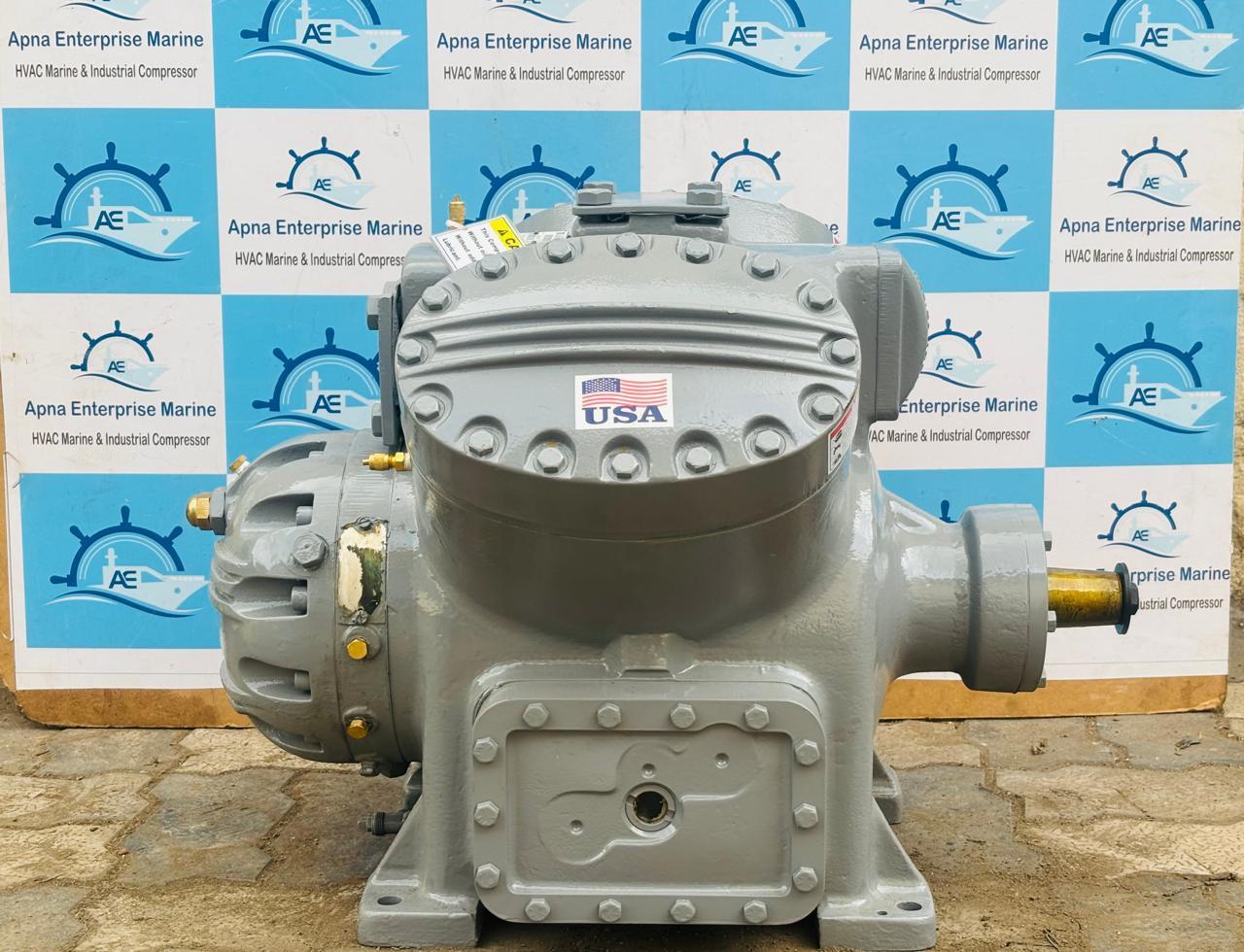

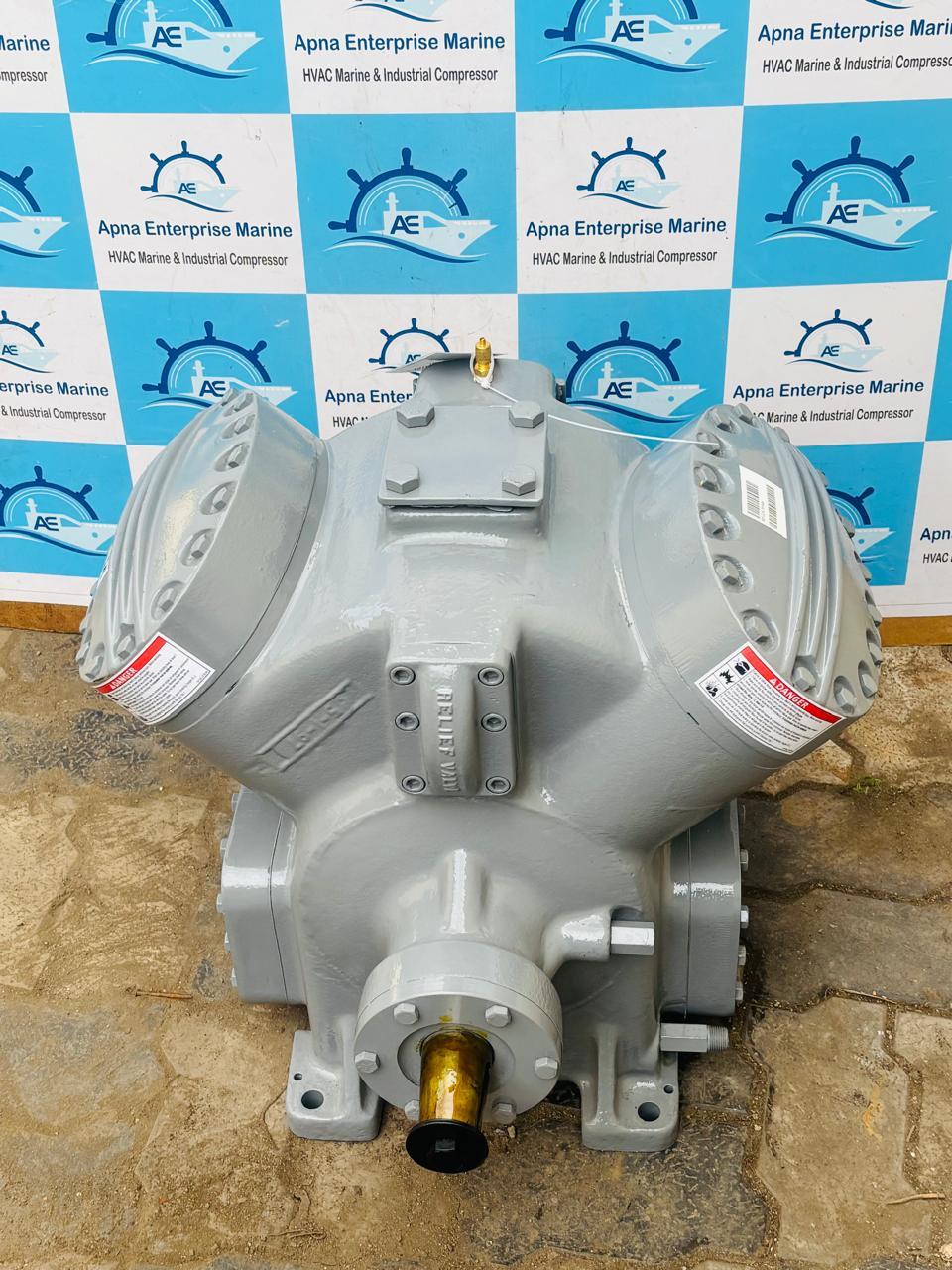

CARRIER CARLYLE 5H46 COMPRESSOR
Description
Technical Specifications
- Manufacturer/Brand: Carrier / Carlyle
- Type: Open-Drive Reciprocating Compressor (Long stroke, coupling drive only)
- Number of Cylinders: 4 Cylinders
- Nominal Capacity / Tonnage: ~50 Ton
- Displacement / CFM: 115.5 CFM at 1750 RPM
- Minimum RPM: 800 RPM
- Weight: Approximately 610 lbs (dry) up to 845 lbs depending on configuration/skid
- Refrigerant Compatibility: R22 (and configurable for other refrigerants like R404A/R507A with proper oil selection)
- Oil Charge: ~18 pints (approx. 8.7 Liters)
- Capacity Control / Unloading: Automatic unloading steps (e.g., 25%, 50%, 75% or down to lower design loads)
